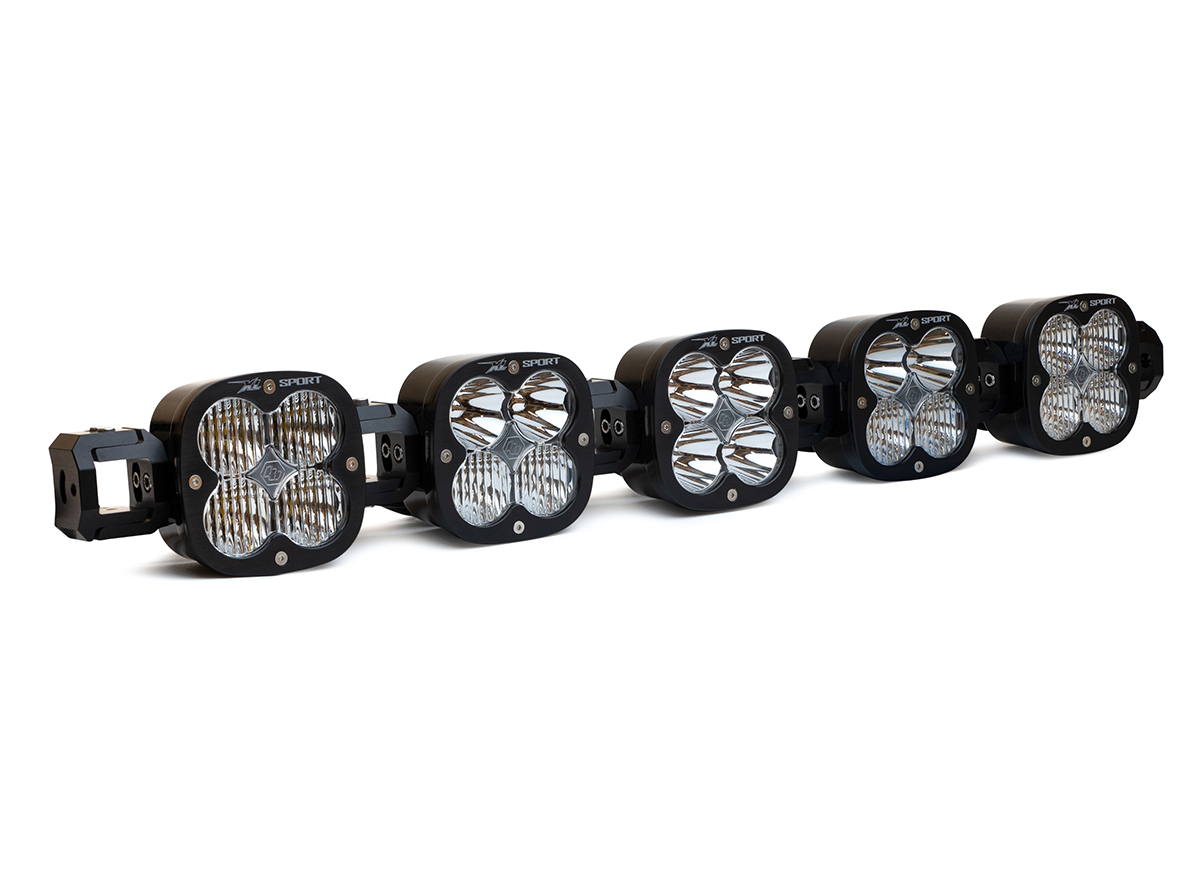

  5. Baja Designs XL Linkable LED Light Bar 5 XLClear Baja Desgins

Baja Designs XL Linkable LED Light Bar 5 XLClear Baja Desgins

Write a Review
On sale: $1,149.95 $1,034.96
Part Number: 740003
Free Shipping on orders over $70

Baja Designs Features:
Satisfactions Guarantee - 30 Day Money Back
Guarantee
Limited Lifetime Warranty- Complete Purchase Protection
uService - Replaceable Lenses And Optics
ClearView - All The Light, Right Where You Need It.
MoistureBlock- Waterproof, Rain Proof, Submersible
CopperDrive - Only LED Driven At 100%
5000K Daylight- Less Driver Fatigue, Natural Color

Specifications:
Lumens:15,750 Utilizing20 LEDs
Wattage/Amps:130W / 10A
LED Life Expectancy:49,930 Hours
Front Lens:Hard Coated Polycarbonate
Housing:Powder Coated Cast Aluminum
Bezel:Billet Machined Aluminum

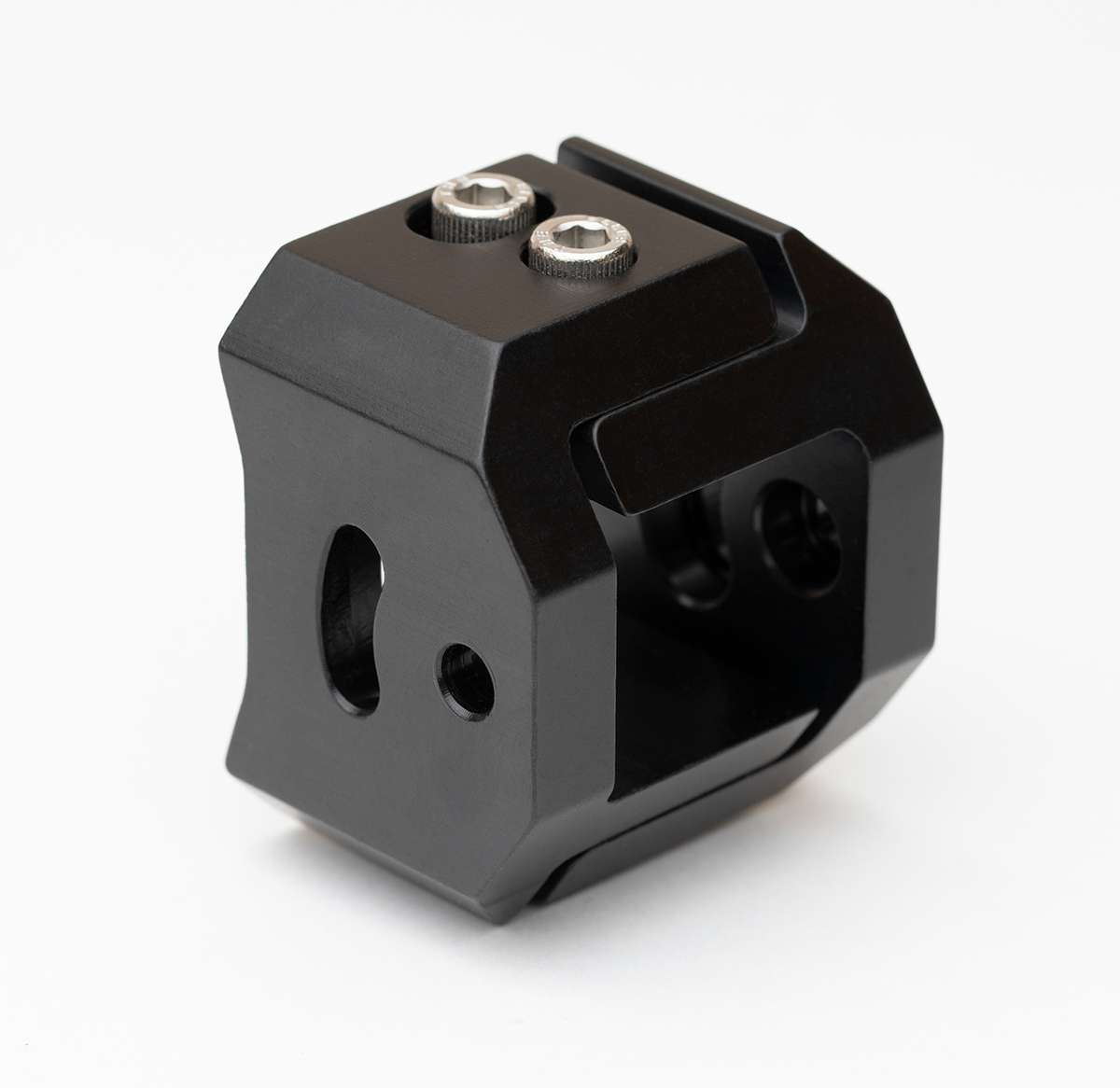

Hardware & Bracket Material:Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)

Includes:

  • x1 XL SportSpotLED Light
  • x2 XL Sport Driving/Combo LED Light
  • x2 XL Sport Wide Cornering LED Light
  • x5 XL Sport Rock Guards

Patterns:

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (44degrees) and spot (6 degrees) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Cornering:BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 44degrees flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)

High Speed Spot:A longer and narrower 6degrees beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
